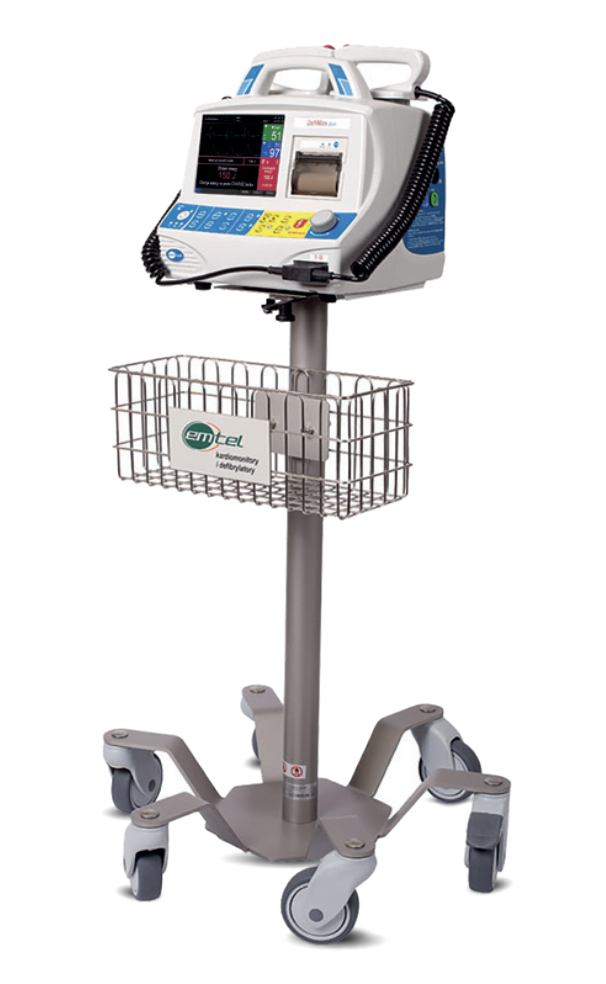

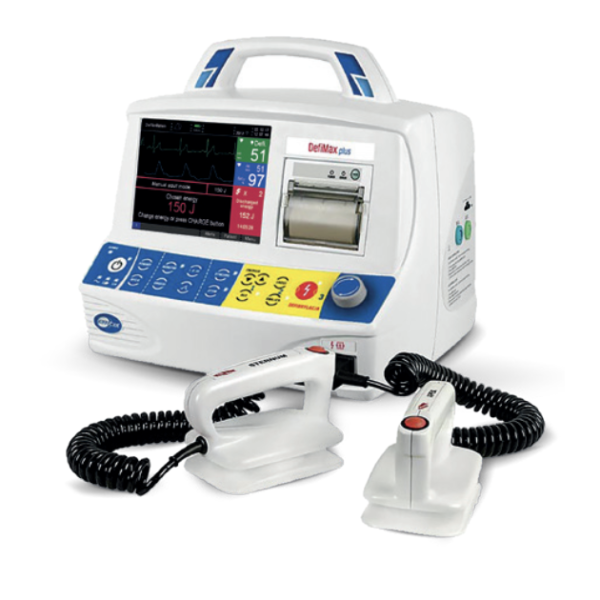

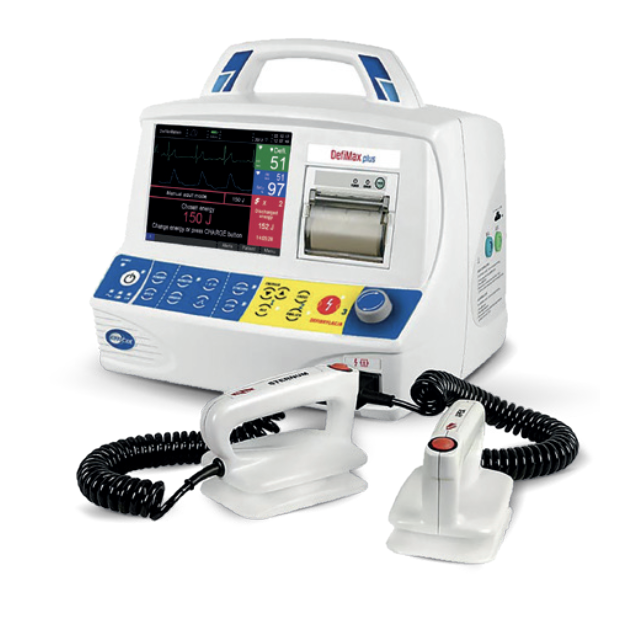

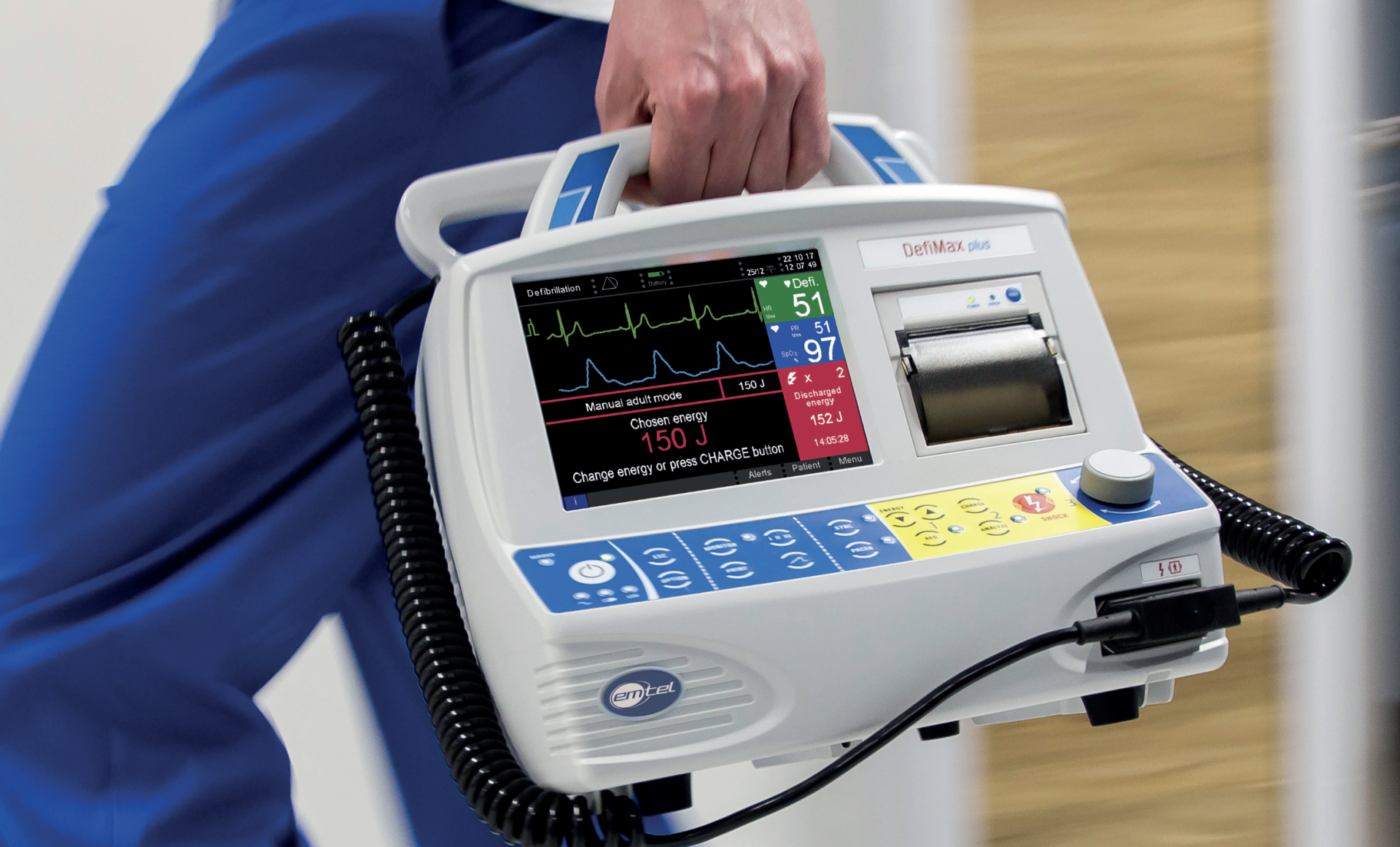

DefiMax Plus is a professional clinical defibrillator with advanced patient monitoring feature. The defibrillator enables monitoring of ECG from 3 and 5 leads ECG cable, arterial pressure measured by non-invasive (NIBP) and invasive (IBP) methods, saturation (SpO ₂ ), temperature and end tidal carbon dioxide (CO ₂ ).

The advanced technology used in the defibrillator provides an energy pulse (from 1 to 300 J) that is precisely adjusted according to the physical parameters of the patient and minimizes damage to the heart muscle.

The defibrillator can work in manual and automatic mode (AED). It can be used to perform cardiac stimulation in asynchronous or synchronous mode.

Specifications:

• Power supply: 100 - 240 VAC, 50/60 Hz.
• Built-in battery: 12 VDC.
• Weight: 6 kg
• Dimensions (L x W x H): 298 x 312 x 260 mm.
• Monitor: 6.5 inches LCD TFT, color, resolution 640 x 480 pixels.
• Type of electrodes: disposable.
• Pulse type: biphasic pulse with patient impedance compensation.
• Energy level: from 1 to 300 J.

DefiMax plus works in the following modes:

• Manual mode.
• ECG mode
• Cardiostimulation mode.
• AED mode.
• Monitoring mode.
• Service mode.
